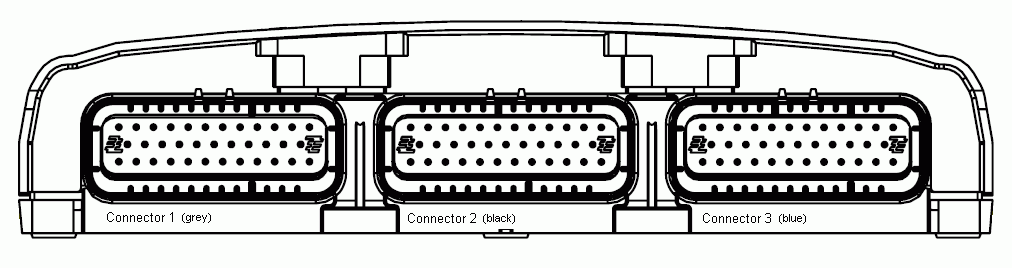

The three connectors are placed in the module according to the following figure:
The following table lists the pins according to their pin number. Other columns offer quick information about the pin and links for more information.
The group column:
* P1/P2 indicates the power source for the pin
smaller case characters indicate the input groups (the pins in the same group have the same configurations)
UPPER CASE CHARACTERS indicate the output groups (the pins in the same group have the same configurations)
I/O table
|
Pin number |
Pin type |
Details |
Group* |
Current / |
Information |
|
X1.1 |
|
|
|
|
|
|
X1.2 |
|
|
|
|
|
|
X1.3 |
|
|
|
|
|
|
X1.4 |
|
|
|
|
|
|
X1.5 |
|
|
|
|
|
|
X1.6 |
|
|
|
|
|
|
X1.7 |
|
|
|
|
|
|
X1.8 |
+10 V 250 mA |
|
|
|
|
|
X1.9 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X1.10 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X1.11 |
2,2 kΩ +10 V / 12,4 kΩ GND
|
a |
|
Min input freq. configurable |
|
|
X1.12 |
12,4 kΩ GND |
P1 / N |
Nominal current 2,5 A |
|
|
|
X1.13 |
LOADER BSL |
For factory use only |
|
|
|
|
X1.14 |
|
|
|
|
|
|
X1.15 |
|
|
|
|
|
|
X1.16 |
|
|
|
|
|
|
X1.17 |
|
|
|
|
|
|
X1.18 |
|
|
|
|
|
|
X1.19 |
|
|
|
|
|
|
X1.20 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X1.21 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X1.22 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / B |
Nominal current 4 A |
|
|
|
X1.23 |
12,4 kΩ GND |
P1 / N |
Nominal current 2,5 A |
|
|
|
X1.24 |
Logic Power Supply |
|
|
|
|
|
X1.25 |
|
|
|
|
|
|
X1.26 |
|
|
|
|
|
|
X1.27 |
|
|
|
|
|
|
X1.28 |
|
|
|
|
|
|
X1.29 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / C |
Nominal current 2,5 A |
|
|
|
X1.30 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / C |
Nominal current 2,5 A |
|
|
|
X1.31 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / D |
Nominal current 2,5 A |
|
|
|
X1.32 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / D |
Nominal current 2,5 A |
|
|
|
X1.33 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / E |
Nominal current 4 A |
|
|
|
X1.34 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / E |
Nominal current 4 A |
|
|
|
X1.35 |
2,2 kΩ +10 V / 12,4 kΩ GND |
P1 / B |
Nominal current 4 A |
|
|
|
|
|||||
|
X2.1 |
Power1 GND |
|
|
|
|
|
X2.2 |
Power1 GND |
|
|
|
|
|
X2.3 |
GND |
|
|
|
|
|
X2.4 |
+10 V 250 mA |
|
|
|
|
|
X2.5 |
+5 V 350 mA |
|
|
|
|
|
X2.6 |
2,2 kΩ +10 V / 12,4 kΩ GND |
f |
Thresh. 5 /10 V |
|
|
|
X2.7 |
2,2 kΩ +10 V / 12,4 kΩ GND |
f |
Thresh. 5 /10 V |
|
|
|
X2.8 |
2,2 kΩ +10 V / 12,4 kΩ GND |
g |
Thresh. 5 /10 V |
|
|
|
X2.9 |
2,2 kΩ +10 V / 12,4 kΩ GND |
g |
Thresh. 5 /10 V |
|
|
|
X2.10 |
GND |
|
|
|
|
|
X2.11 |
GND |
|
|
|
|
|
X2.12 |
GND |
|
|
|
|
|
X2.13 |
12,4 kΩ GND |
P1 / Q |
Nominal current 2,5 A |
|
|
|
X2.14 |
12,4 kΩ GND |
P1 / Q |
Nominal current 2,5 A |
|
|
|
X2.15 |
12,4 kΩ GND |
|
|
|
|
|
X2.16 |
2,2 kΩ +10 V / 12,4 kΩ GND |
h |
|
|
|
|
X2.17 |
2,2 kΩ +10 V / 12,4 kΩ GND |
h |
|
|
|
|
X2.18 |
12,4 kΩ GND |
|
|
|
|
|
X2.19 |
2,2 kΩ +10 V / 12,4 kΩ GND |
i |
|
|
|
|
X2.20 |
2,2 kΩ +10 V / 12,4 kΩ GND |
i |
|
|
|
|
X2.21 |
Reserved |
For factory use only |
|
0/4..20 mA |
|
|
X2.22 |
Reserved |
For factory use only |
|
0/4..20 mA |
|
|
X2.23 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0/4..20 mA 0..10 V |
|
|
|
X2.24 |
|
|
|
|
|
|
X2.25 |
|
|
|
|
|
|
X2.26 |
12,4 kΩ GND |
Nominal current 3 A |
|
||
|
X2.27 |
12,4 kΩ GND |
Nominal current 3 A |
|
||
|
X2.28 |
12,4 kΩ GND |
P2 / O |
Nominal current 2,5 A |
|
|
|
X2.29 |
12,4 kΩ GND |
P2 / O |
Nominal current 2,5 A |
|
|
|
X2.30 |
12,4 kΩ GND |
P2 / R |
Nominal current 2,5 A |
|
|
|
X2.31 |
12,4 kΩ GND |
P2 / R |
Nominal current 2,5 A |
|
|
|
X2.32 |
12,4 kΩ GND |
P2 / T |
Nominal current 2,5 A |
|
|
|
X2.33 |
12,4 kΩ GND |
P2 / T |
Nominal current 2,5 A |
|
|
|
X2.34 |
12,4 kΩ GND |
Nominal current 3 A |
|
||
|
X2.35 |
12,4 kΩ GND |
Nominal current 3 A |
|
||
|
|
|||||
|
X3.1 |
|
|
|
|
|
|
X3.2 |
|
|
|
|
|
|
X3.3 |
GND |
|
|
|
|
|
X3.4 |
GND |
|
|
|
|
|
X3.5 |
2,2 kΩ +10 V / 12,4 kΩ GND |
j |
|
Min input freq. configurable |
|
|
X3.6 |
2,2 kΩ +10 V / 12,4 kΩ GND |
j |
|
Min input freq. configurable |
|
|
X3.7 |
12,4 kΩ GND |
|
|
|
|
|
X3.8 |
2,2 kΩ +10 V / 12,4 kΩ GND |
k |
|
Min input freq. configurable |
|
|
X3.9 |
2,2 kΩ +10 V / 12,4 kΩ GND |
k |
|
Min input freq. configurable |
|
|
X3.10 |
12,4 kΩ GND |
|
|
|
|
|
X3.11 |
2,2 kΩ +10 V / 12,4 kΩ GND |
l |
|
Min input freq. configurable |
|
|
X3.12 |
2,2 kΩ +10 V / 12,4 kΩ GND |
l |
|
Min input freq. configurable |
|
|
X3.13 |
+10 V 250 mA |
|
|
|
|
|
X3.14 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.15 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.16 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.17 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.18 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.19 |
2,2 kΩ +10 V / 220 Ω GND / 47,5 kΩ GND |
|
0..22 mA 0..10 V |
|
|
|
X3.20 |
+5 V 350 mA |
|
|
|
|
|
X3.21 |
2,2 kΩ +10 V / 12,4 kΩ GND |
m |
|
Min input freq. configurable |
|
|
X3.22 |
2,2 kΩ +10 V / 12,4 kΩ GND |
m |
|
Min input freq. configurable |
|
|
X3.23 |
2,2 kΩ +10 V / 12,4 kΩ GND |
a |
|
Min input freq. configurable |
|
|
X3.24 |
|
|
|
|
|
|
X3.25 |
|
|
|
|
|
|
X3.26 |
12,4 kΩ GND |
P2 / S |
Nominal current 2,5 A |
|
|
|
X3.27 |
12,4 kΩ GND |
P2 / S |
Nominal current 2,5 A |
|
|
|
X3.28 |
12,4 kΩ GND |
P2 / U |
Nominal current 2,5 A |
|
|
|
X3.29 |
12,4 kΩ GND |
P2 / U |
Nominal current 2,5 A |
|
|
|
X3.30 |
12,4 kΩ GND |
P2 / X |
Nominal current 2,5 A |
|
|
|
X3.31 |
12,4 kΩ GND |
P2 / X |
Nominal current 2,5 A |
|
|
|
X3.32 |
12,4 kΩ GND |
P2 / V |
Nominal current 2,5 A |
|
|
|
X3.33 |
12,4 kΩ GND |
P2 / V |
Nominal current 2,5 A |
|
|
|
X3.34 |
12,4 kΩ GND |
P2 / Y |
Nominal current 2,5 A |
|
|
|
X3.35 |
12,4 kΩ GND |
P2 / Y |
Nominal current 2,5 A |
|
|
