+5V REF_Type015

This is an internally regulated and monitored reference voltage supply for external devices.
This reference output can be switched on/off by application.

Overload protection

If the output current exceeds the nominal output current, then the output voltage is less than the specified voltage level.

Voltage monitoring

The level of the output voltage can be monitored by application.

Electrical characteristics

*Symbol*	*Parameter*	*Conditions*	*Min*	*Max*	*Units*
VoLevel	Output voltage	Output On, Unconnected pins	typ. 5,0		V
Io	Nominal Output Current	Output On, Uin = 8,3 - 36 V VoLevel ≥ 4,75	0	350	mA
Co	Output Capacitance	On each pin	typ. 47		nF
VI-max	Max Input voltage	Overload conditions (Note 1)	-0,5	50	V
*Voltage monitoring*
Vo-range	Nominal Voltage measuring range		0	28,5	V
Vo-prop	Measuring accuracy Proportional factor	Calculated		+/-1	%
Vo-zero	Offset Error	Calculated		+/-0,1	%
Vo-zero	Offset Error	Calculated		+/-28,5	mV

Note 1: When output voltage is under overload conditions, for example, short circuit to supply voltages. Exceeding the max value might cause damage to output.

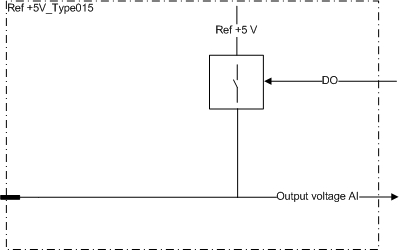

Functional block diagram
