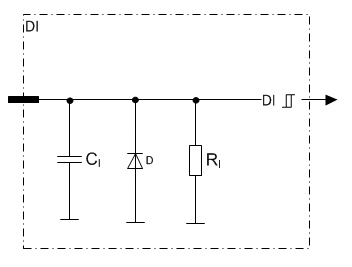

This type of pin is a ground referenced input (DI)
This type of pin has no configurable features
Electrical characteristics
|
Symbol |
Parameter |
Conditions |
Min |
Max |
Units |
|
RI |
Input Resistance |
Referenced to GND |
typ. 44 |
kΩ |
|
|
VIH |
Input High Voltage level |
(Note 1, 3) |
4,2 |
36 |
V |
|
VIL |
Input Low Voltage level |
(Note 3) |
0 |
3,4 |
V |
|
VI-max |
Max Input voltage |
(Note 2) |
-0,5 |
43 |
V |
|
CI |
Input pin capacitance |
|
typ. 1 |
nF |
|
Note 1: Exceeding the max values might cause damage to input.
Note 2: Overload conditions.

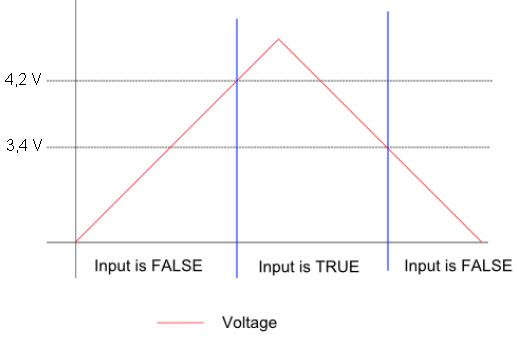

Note 3: Includes hysteresis. The input state is maintained until the second voltage limit is exceeded
