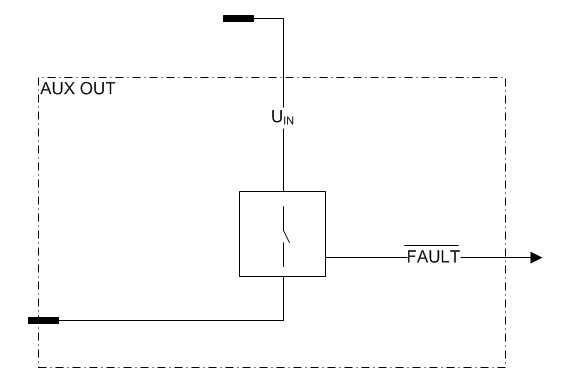

This kind of pin is an auxiliary supply for external devices (Uin / max 6 A)
The output is enabled by default during power-up
This output has integrated protection features (overload, overcurrent)
In case of an error, the output is latched off and can be re-enabled only by control unit power cycle.
Errors are indicated with a fault signal
Electrical characteristics
|
Symbol |
Parameter |
Conditions |
Min |
Max |
Units |
|
RO |
Output Resistance |
|
|
0,1 |
Ω |
|
IO |
Output Current |
|
0 |
6 |
A |
|
Io-lim |
Internal current limitation |
Output On (Note 1, 2) |
typ. 12 |
A |
|
|
CO |
Output Capacitance |
|
typ. 1 |
nF |
|
Note 1: Current limit for short circuit protection to protect cabling and to limit internal power dissipation.
Note 2: When the limit is exceeded, the output is latched off. The output is re-enabled only by control unit power cycle.
