The minimum input voltage (Uin) is 14 V. If the voltage is below 14 V, the given parameter values (in the table below) may not be valid.
This is an internally regulated and monitored reference voltage supply for external devices.
This reference output can be switched on/off by application.
|
|
The minimum input voltage (Uin) is 14 V. If the voltage is below 14 V, the given parameter values (in the table below) may not be valid.
|
If the output current exceeds the nominal output current, then the output voltage is less than the specified voltage level.
The level of the output voltage can be monitored by application.
Electrical characteristics
|
Symbol |
Parameter |
Conditions |
Min |
Max |
Units |
|
Vo-level |
Output voltage |
Output On, Unconnected pins |
typ. 12 |
V |
|
|
Io |
Nominal Output Current |
Output On, Max total for all pins together |
0 |
200 |
mA |
|
Output On; Tamb-max; Max total for all pins together |
|
100 |
mA |
||
|
Co |
Output Capacitance |
|
typ. 10 |
nF |
|
|
Voltage monitoring |
|||||
|
VI-range |
Nominal Voltage measuring range |
|
0 |
23,5 |
V |

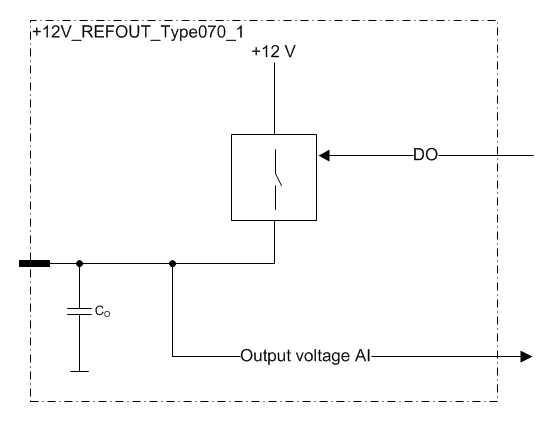

Functional block diagram
