When Epec 6000 series display unit is mounted using a panel mounting, it is possible to add an external cooler to panel mounting frame.
The following figures show possible connection diagrams for the cooler.

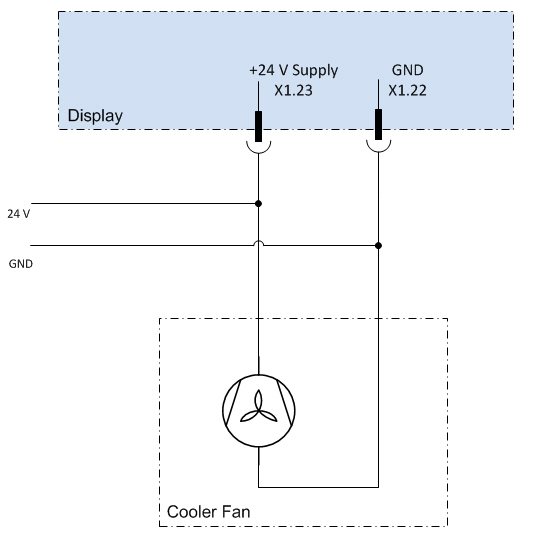

Connection diagram using supply pin and GND pin:

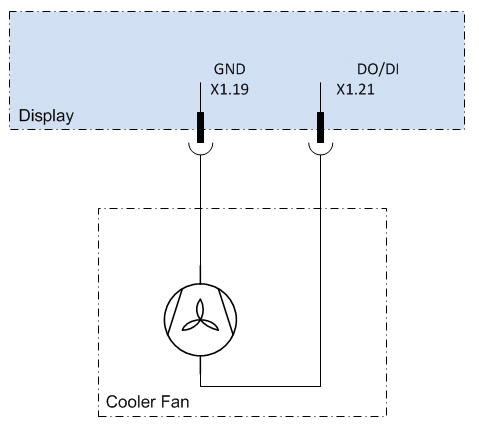

Connection diagram using DO/DI pin and GND pin:
