The maximum continuous current per pin is 10 A.
|
|
The maximum continuous current per pin is 10 A. |
The nominal operating voltage for Epec modules is 12 and 24 VDC. The full operating range is 8,3 - 36VDC.
See section Power supply pins and limitations for accurate pin allocation of the connectors when using Epec 5050 control unit.
Single point grounding should be used for power supply for all the control units.

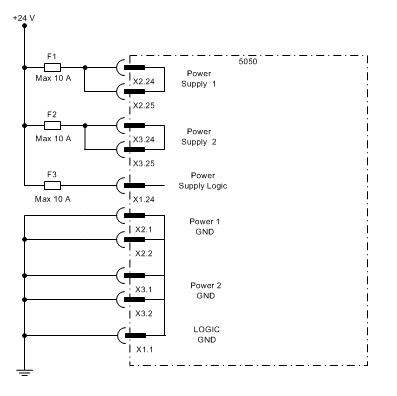

Power supply's wiring example when max 10 A is needed from Power 1 and Power 2:

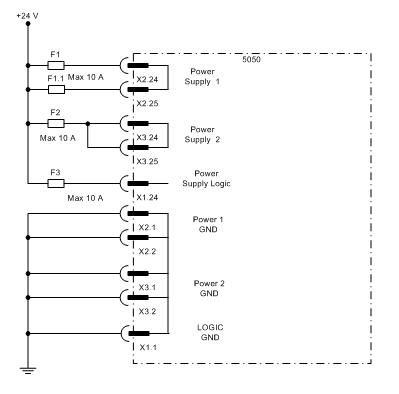

Power supply's wiring example when max 14 A is needed from Power 1 and max 10 A from Power 2:

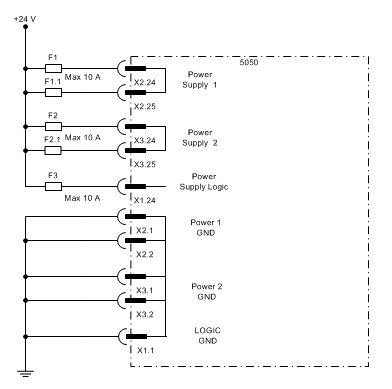

Power supply's wiring example when max 14 A is needed from Power 1 and max 14 A from Power 2:

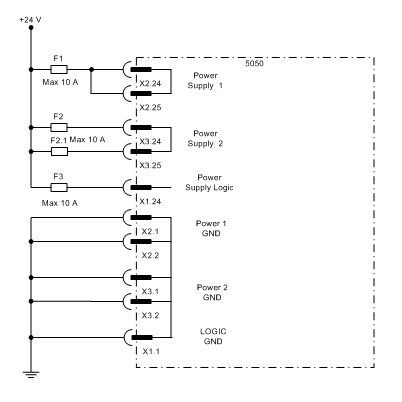

Power supply's wiring example when max 10 A is needed from Power 1 and max 14 A from Power 2:

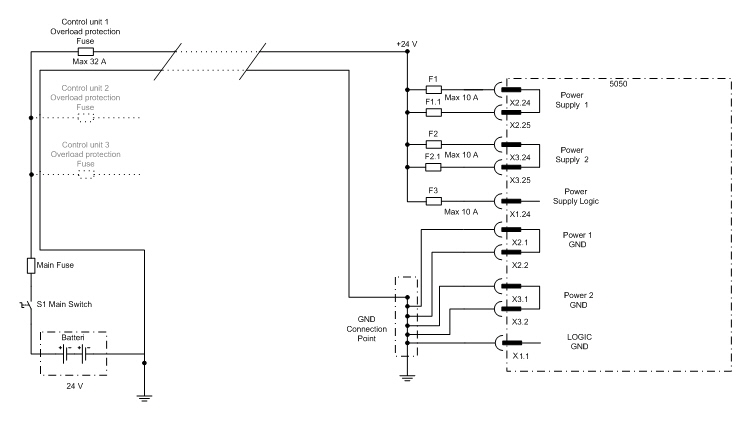

Power supply's wiring when using one battery:

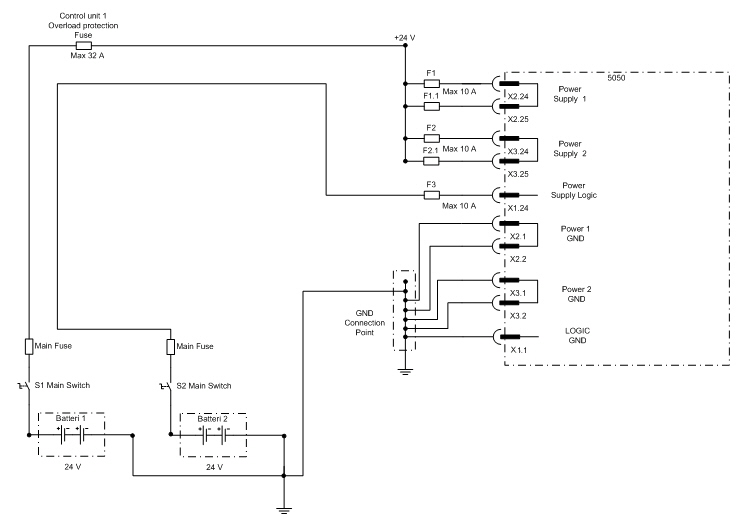

Power supply's wiring when using two batteries:
