Supported platforms: CODESYS 2.3, CODESYS 3.5

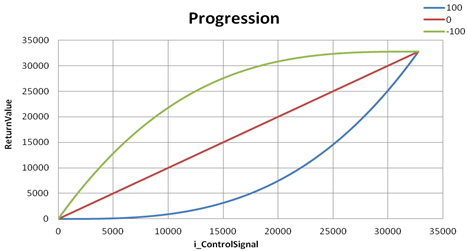

JCD_Progression function is used for generating progression to the control signal according to the given progression factor.
The function limits the progression factor between -100..100, in case the progression value is set outside these limits. Also, i_Control is limited between 0..32767. If the progression value is zero, the function doesn’t make the calculation and it returns i_Control value directly.
Algorithm for positive progression:
Algorithm for negative progression:
|
This function is primarily intended for JoystickCalibrationAndDiagnostic library's internal use. |
Input variable name |
Data type |
Range |
Description |
i_Control |
INT |
0…32767 |
Calibrated control signal |
i_Progression |
SINT |
-100…100 |
Amount and type of the progression used |
Return value |
Data type |
Range |
Description |
|
INT |
0…32767 |
Control signal with progression |
-
