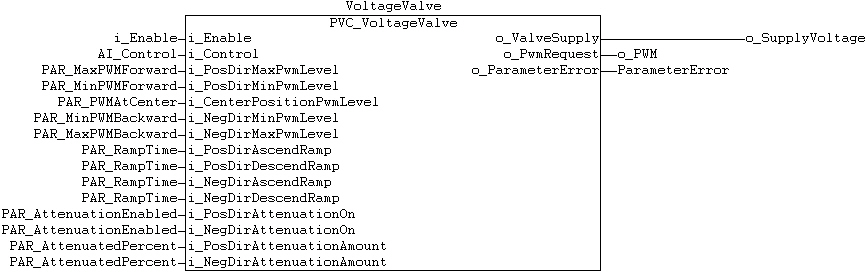

PVC_VoltageValve (FB)

The FB calls PVC_Attenuation and Ramp_Linear. Note! Ramp speed changes when minimum or maximum PWM level parameters are changed.

The FB scales the control signal to the PWM request with PVC_To_PWMReq function.

The FB checks input parameters to ensure their valid values, In case of an incorrect value in any of the parameters, o_ParameterError output is activated.

o_ValveSupply is active and the PWM request is calculated when i_Enable is true and a parameter error is not active.

If i_ControlValue input gets a value of -32768, it will limited (overwritten) internally to -32767.

Output is used to control the supply voltage for a valve with a DO output. Note that this FB does not include diagnostics for the DO; it must be implemented in the application.

If i_Enable is inactive or in case of a parameter error or AI voltage error, the PWM request is set to zero and valve supply output is set FALSE.

Limitations

Inputs

Input variable name	Data type	Range	Description
i_Enable	BOOL	FALSE/TRUE	Enables controlling of the output
i_Control	INT	-32767..32767	Control signal from e.g. joystick
i_PosDirMaxPwmLevel	UINT	0..1000 (0,1%)	Maximum PWM percent for positive direction
i_PosDirMinPwmLevel	UINT	0..1000 (0,1%)	Minimum PWM percent for positive direction
i_CenterPositionPwmLevel	UINT	0..1000 (0,1%)	PWM percent for center position (i.e. zero position)
i_NegDirMinPwmLevel	UINT	0..1000 (0,1%)	Minimum PWM percent for negative direction
i_NegDirMaxPwmLevel	UINT	0..1000 (0,1%)	Maximum PWM percent for negative direction
i_PosDirAscendRamp	UINT	0…60000 ms	Ascending speed for positive direction
i_PosDirDescendRamp	UINT	0…60000 ms	Descending speed for positive direction
i_NegDirAscendRamp	UINT	0…60000 ms	Ascending speed for negative direction
i_NegDirDescendRamp	UINT	0…60000 ms	Descending speed for negative direction
i_PosDirAttenuationOn	BOOL	FALSE/TRUE	If input is true, controlling of positive direction is limited to given percentage of maximum control
i_NegDirAttenuationOn	BOOL	FALSE/TRUE	If input is true, controlling of negative direction is limited to given percentage of maximum control
i_PosDirAttenuationAmount	BYTE	0..100 %	Amount of attenuation for positive direction. If value is 0 function is not used
i_NegDirAttenuationAmount	BYTE	0..100 %	Amount of attenuation for negative direction. If value is 0 function is not used

Input variable name	Data type	Range	Description
i_Enable	BOOL	FALSE/TRUE	Enables controlling of the output
i_Control	INT	-32767..32767	Control signal from e.g. joystick
i_PWMType	ADData	G_AIType struct	Type of PWM output
i_PosDirMaxPwmLevel	UINT	0..1000 (0,1%)	Maximum PWM percent for positive direction
i_PosDirMinPwmLevel	UINT	0..1000 (0,1%)	Minimum PWM percent for positive direction
i_CenterPositionPwmLevel	UINT	0..1000 (0,1%)	PWM percent for center position (i.e. zero position)
i_NegDirMinPwmLevel	UINT	0..1000 (0,1%)	Minimum PWM percent for negative direction
i_NegDirMaxPwmLevel	UINT	0..1000 (0,1%)	Maximum PWM percent for negative direction
i_PosDirAscendRamp	UINT	0…60000 ms	Ascending speed for positive direction
i_PosDirDescendRamp	UINT	0…60000 ms	Descending speed for positive direction
i_NegDirAscendRamp	UINT	0…60000 ms	Ascending speed for negative direction
i_NegDirDescendRamp	UINT	0…60000 ms	Descending speed for negative direction
i_PosDirAttenuationOn	BOOL	FALSE/TRUE	If input is true, controlling of positive direction is limited to given percentage of maximum control
i_NegDirAttenuationOn	BOOL	FALSE/TRUE	If input is true, controlling of negative direction is limited to given percentage of maximum control
i_PosDirAttenuationAmount	BYTE	0..100 %	Amount of attenuation for positive direction. If value is 0 function is not used
i_NegDirAttenuationAmount	BYTE	0..100 %	Amount of attenuation for negative direction. If value is 0 function is not used

Outputs

Output variable name	Data type	Range	Description
o_ValveSupply	BOOL	FALSE/TRUE	Supply voltage control condition for valve
o_PwmRequest	UINT	0..1000 (0,1%)	Pwm percent value for valve
o_ParameterError	BOOL	FALSE/TRUE	True when incorrect parameter value in any of the FB’s input.

Output variable name	Data type	Range	Description
o_ValveSupply	BOOL	FALSE/TRUE	Supply voltage control condition for valve
o_PwmRequest	UINT	0..1000 (0,1%)	Pwm percent value for valve
o_ParameterError	BOOL	FALSE/TRUE	True when incorrect parameter value in any of the FB’s input.
o_IllegalControlRequestInStartup	BOOL	FALSE/TRUE	True if unexpected control request occurs. i_Control is not 0 when i_Enable is set to true.
